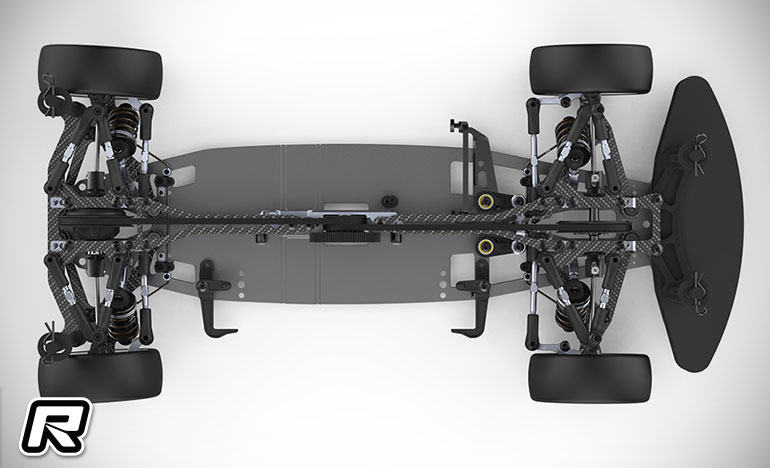

C’est officiel: Red RC » Schumacher Mi10 Touring Car
Mi10 Feature List
New – Alloy shock mounts with lightweight, lower centre of gravity design and finer adjustment with spacers. Additional flex adjustment settings are also now available.
New – Lower and more durable rear body mounting solution.
New – Hub carrier design featuring flanged bearings which offers a more precise design with better wheel control and drivetrain efficiency. These also include a threaded insert for the upper ball stud to increase durability.
New – Alloy steering arms for greater strength, ease of assembly and improved handling with better steering response and feeling.
New – Upper link pivot with integrated thread and new moulded body height stopper.
New – Radius arms with further Ackermann adjustment included. Lightweight design and improved belt clearance for ultra-high diff settings.
New – Motor mount design featuring an in-built layshaft and increased motor positioning adjustment. This allows for a wider variety of gear sizes which can offer a more central motor and overall improved weight balance. The new layshaft design increases durability of the spur gear as well as moving it further inwards providing better belt control. A new optional fan mount is also compatible.
New – Anti-roll bar design provides easy accessibility and extra low centre of gravity with compact design, lightweight and clearance of all parts. Now with a spring controlled roll bar adjustment on the chassis side for very easy and accurate setting.
New – Increased diameter turnbuckles for improved strength.
New – Rear link orientation for easier accessibility, to install and remove shocks.
New – C/F link mounts for improved strength and updates with increased spread and position of upper links with improved upper arm flex control.
New – Top decks with refinements to improve performance and clearance to an updated spur gear area.
New – All new grey anodised alloy parts.
New – Lower bumper mount moulding prevents touching down on the track.
Le manuel est dispo ici: https://www.racing-cars.com/technical-information-mi10
